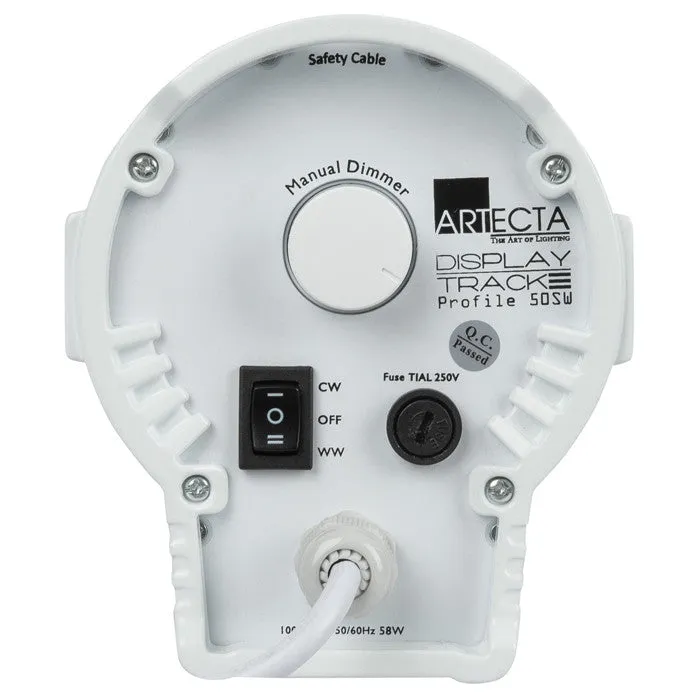

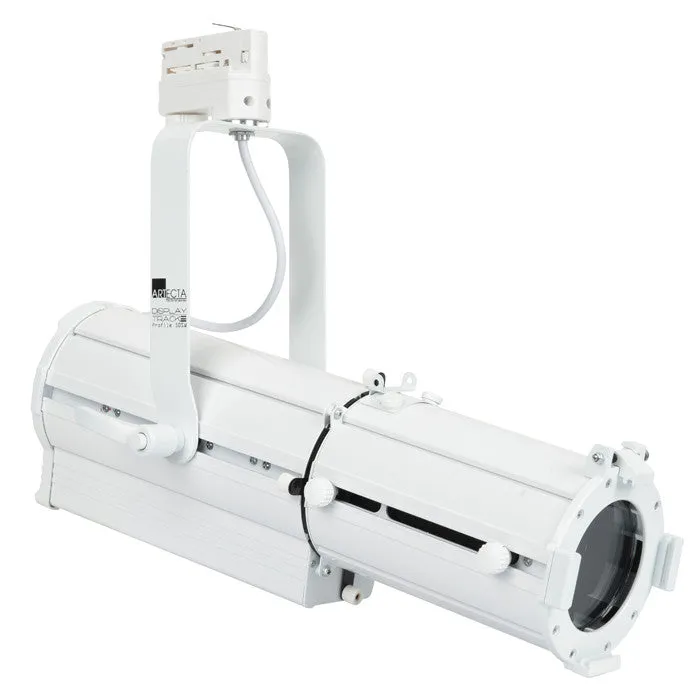

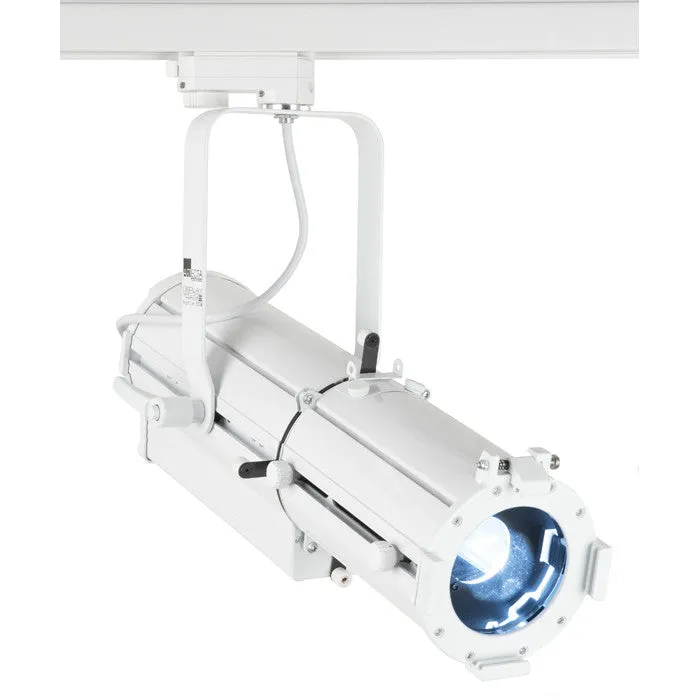

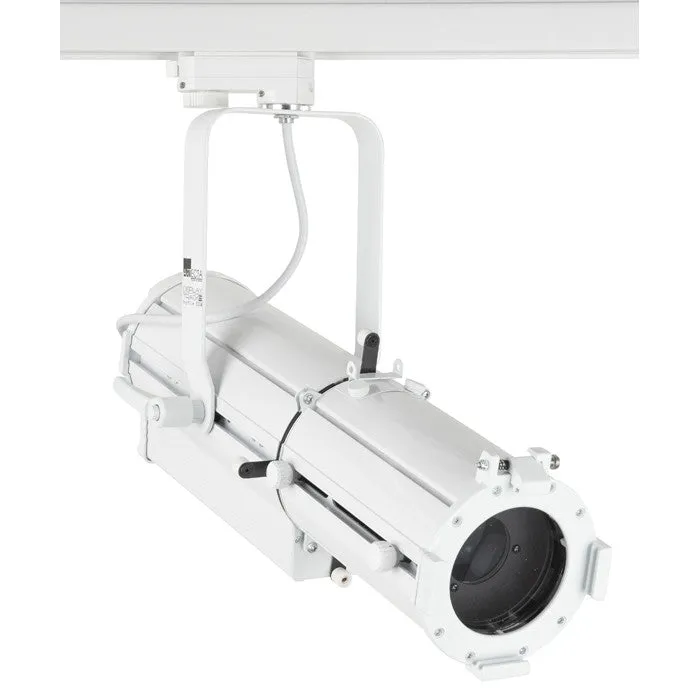

The Artecta Display Track Profile SW is a compact 50 watt Cold and Warm White LED Profile, mountable on most 3-phase track systems and suitable for indoor display applications. Its hard-edge (goboed) output can be set between a narrow 13° and a wide 30° beam angle. A switch at the back of the fixture enables you to set either a 3000 K or 6000 K colour temperature, both rendering with high (>95 CRI) accuracy. Moreover, a dimmer function is built in for controlling the output intensity. Not only the intensity and colour temperature, but also the shape of the output is manually adjustable due to its four shapers. Optionally, you can colour the output by adding a filter frame at the front of the lens. The Display Track Profile 50 SW fits in every setting with either black and white housing. A power cable and gobo holder are included.

from on .

Specifications

Source

Optical

Beam Angle Circular (min)	13°
Beam Angle Circular (max)	30°

Control and Programming

Dimmable

Yes



Electrical Specifications and Connections

Power Supply	100-240 VAC 50-60 Hz
Power Consumption	50 W
Power Connector in	3 Phase Track Adaptor

Mechanical Specifications

Length (mm)	411 mm
Height (mm)	263 mm
Width (mm)	170 mm
Weight	2.86 kg
IP Rating	IP20 (indoor use only)
Housing	Aluminium
Finish	Powder Coating
Colour	White

Rigging

Mounting Options	Bracket
Safety Attachment	Yes



Thermal Specifications

Maximum Ambient Temperature	40 °C
Minimum Ambient Temperature	20 °C
