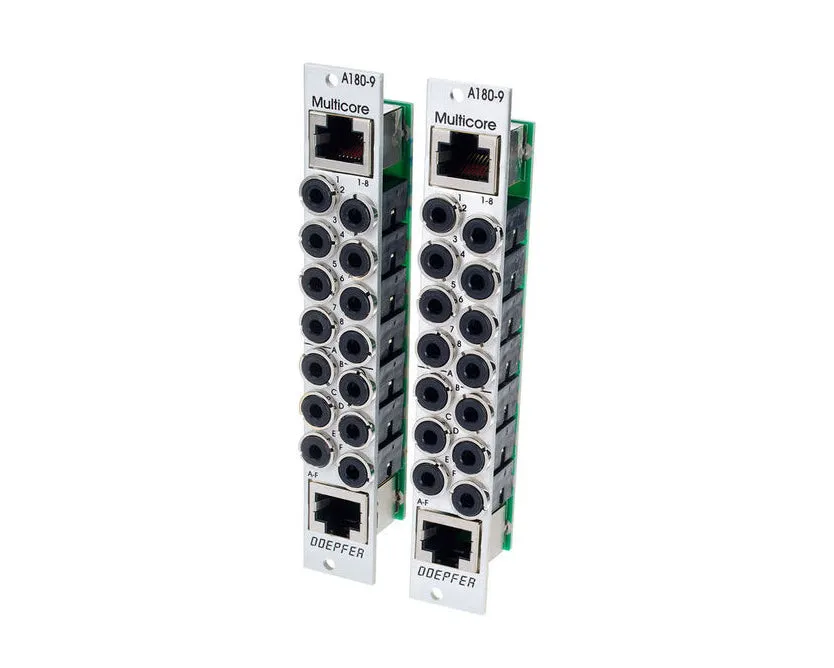

A-180-9 is a simple but useful tool when it comes to networking multiple systems or enclosures. Sold as a pair of 2 x 4HP modules, it is used to connect up to 14 audio or control signals between different A-100 enclosures with common network cables (RJ45). These cables are available worldwide in different lengths and colours easily. 2 black network cables with a length of 0.5m are included.

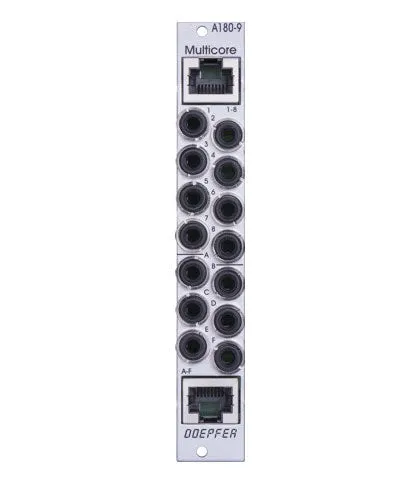

The upper network connection is connected to the 8 sockets 1-8, the lower one to the 6 sockets AF. In this way, the modules in the different housings for live applications can be completely pre-patched. The signals required simultaneously in the housings (eg Clock, Start, Stop, Master CV) are then connected to only one or two network cables.
Includes two modules and two network cables at 0.5 m length. Brand new with warranty.
Product Specs
- Item Number: 12025
- Make:
- Model:
- Condition:
- Finish: Silver
- Categories: ⇒
- Function:
- Made In: Germany
- MPN: A-180-9
- EAN: 4250711118099
- Modular Grid: Eurorack
- Dimensions*: 4 HP 25 mm deep
- Power*: Module does not draw current
* User contributed details
