Evolution EV4K7014 4K 1×4 HDMI 4K@60Hz Splitter over Cat6 Cable with HDMI Loop-out

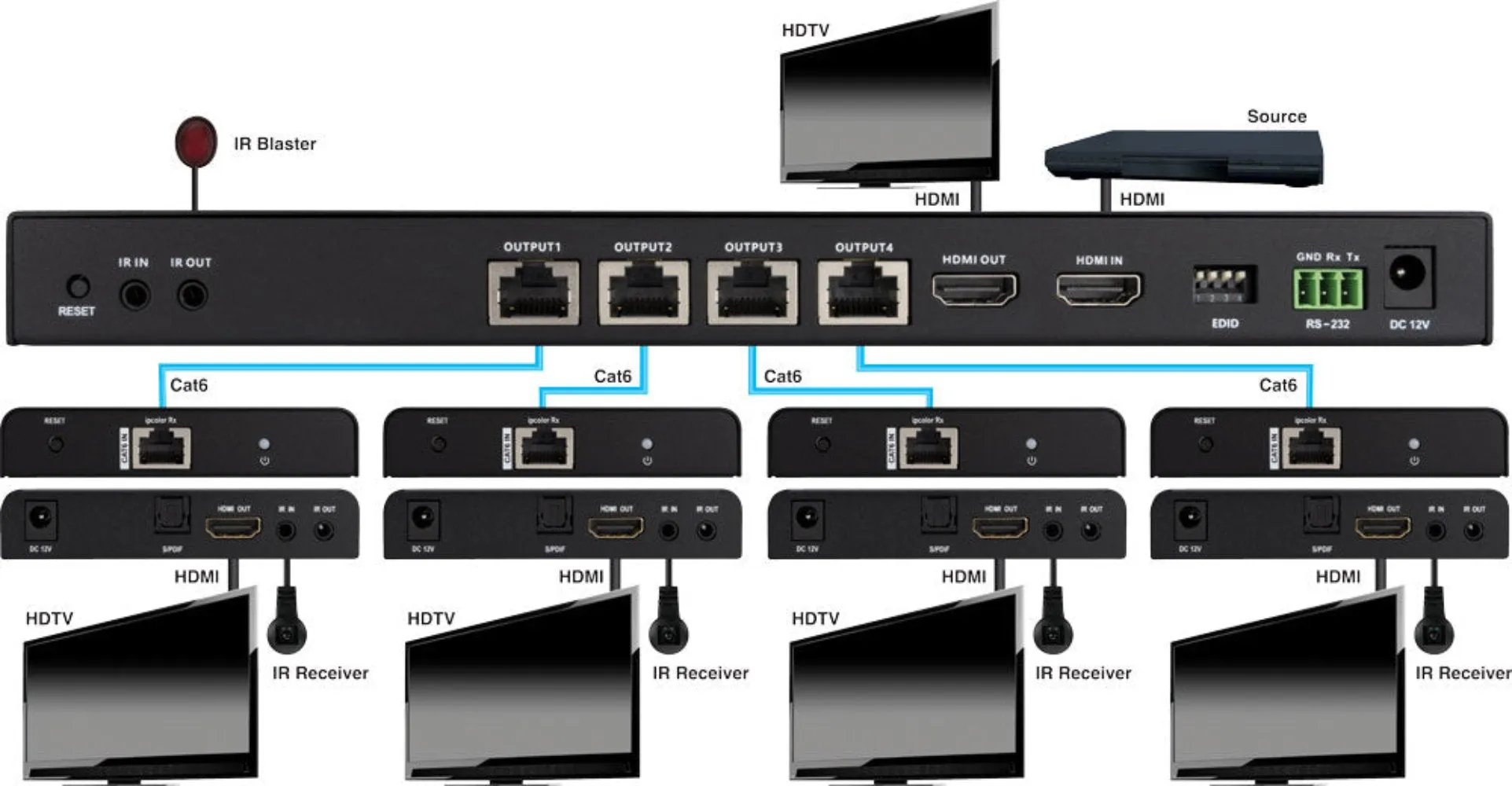

• Allows a single source to be split and extended to multiple displays.
• Complete kit with (4) PoE Receivers included
• Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
• Transmission Range: Extends 4K@60Hz, 4:4:4 Chroma with HDR10 and IR up to 230ft/70m and 1080p up to 330ft/100m over a single Cat6 cable
• Features Power over Ethernet (PoE) Technology which transmits power over Cat6, allowing the receivers to be powered without connecting a power supply
• Latency under 30ms
• Supports bi-directional IR (20~60kHz) for source or display control
• IR accessories included allowing for source control from each UTP display location
• Features auto and manual EDID options for compatibility with source and displays
• Digital audio breakout on the receivers for source audio extraction
• HDCP 1.4/2.2 compliant
• Slim and compact design
• RS232 control of splitter
• Pure uncompressed 7.1 ch digital audio
• Supports DTS-HD and Dolby TrueHD high bit rate audio

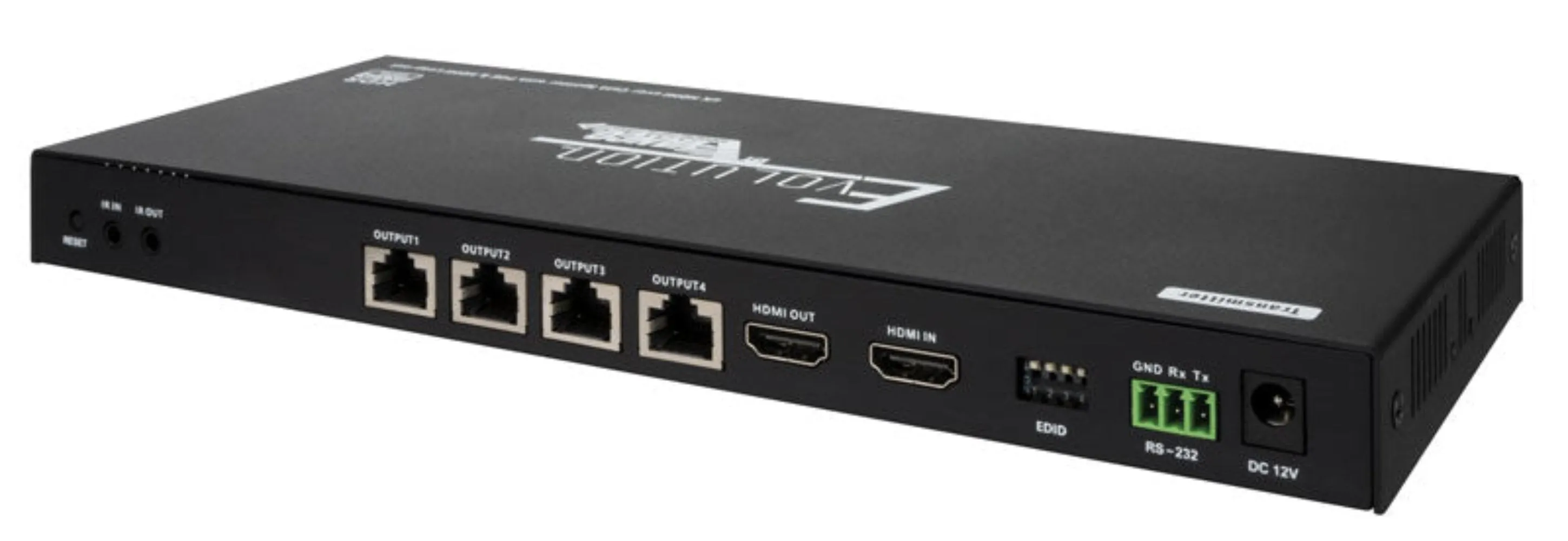

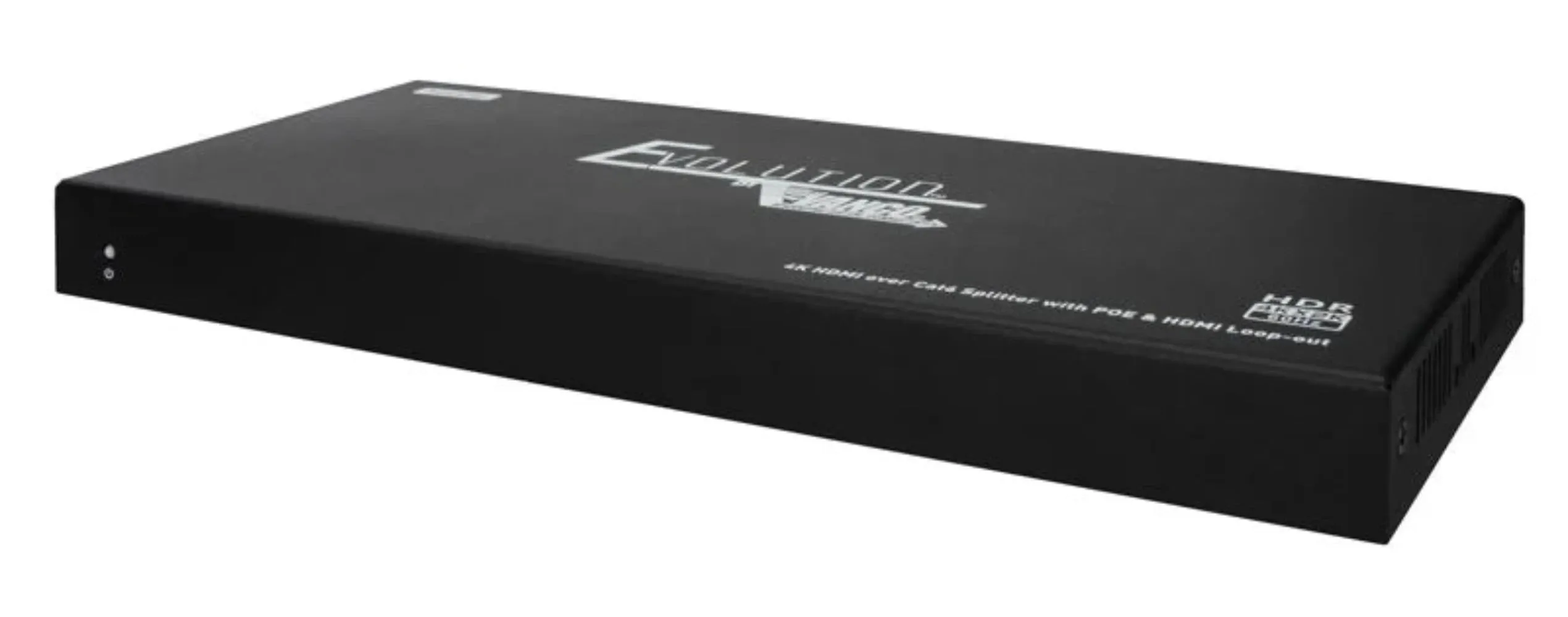

• Splitter Dimensions: 14.3” L x 4.09 W x 0.9” H (264.40mm L x 104 mm W x 23.85mm H)

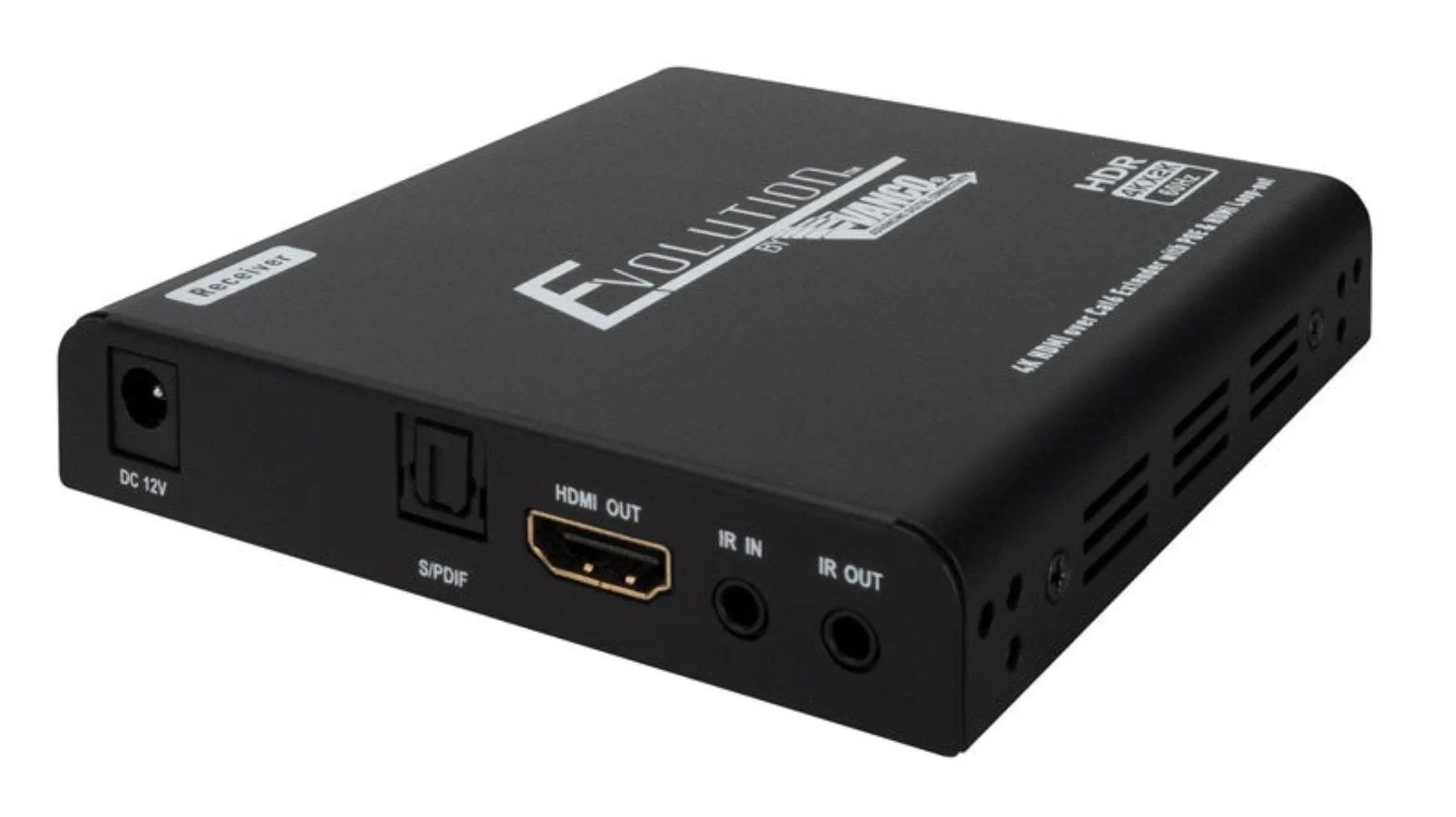

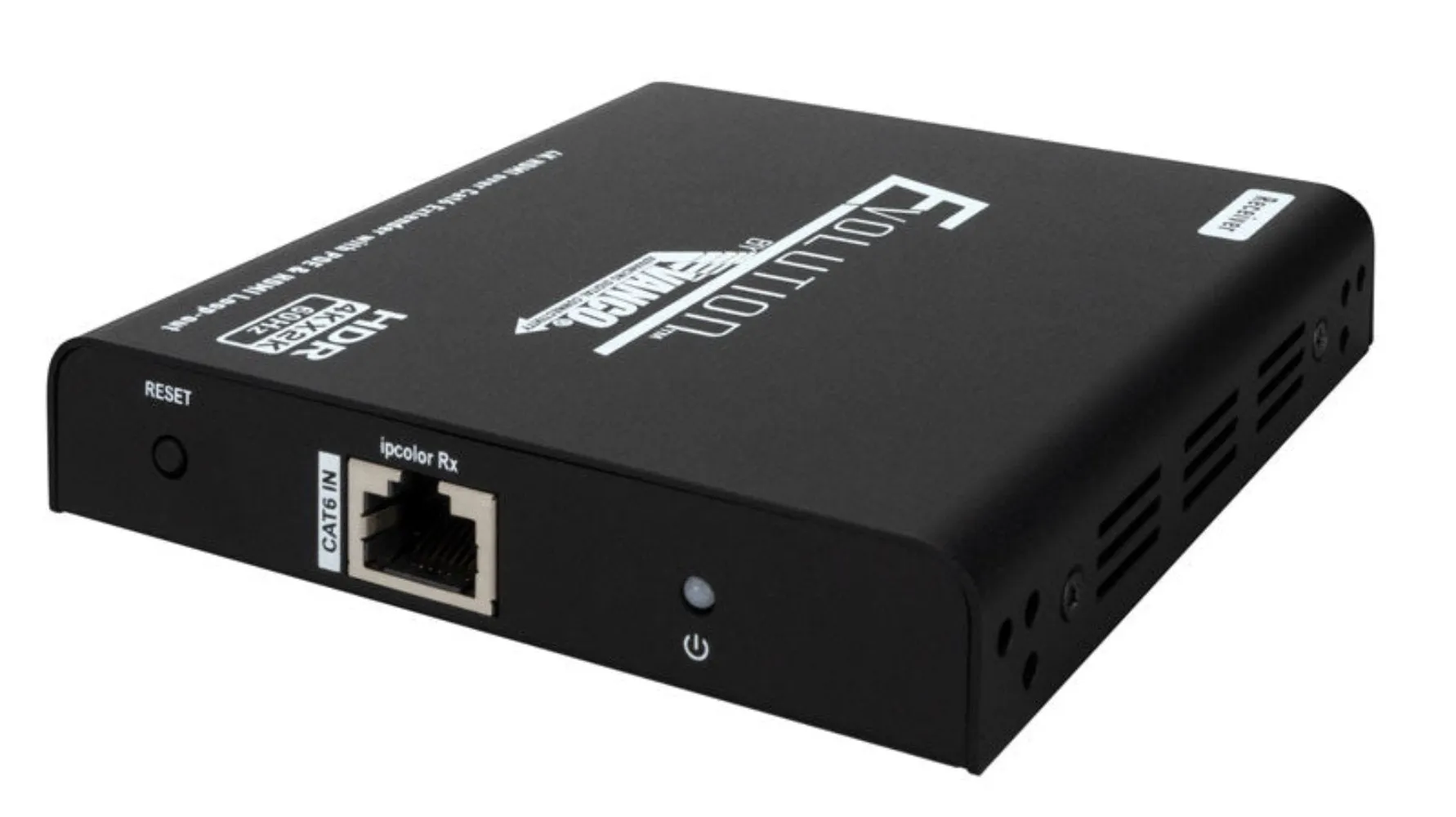

• Receiver Dimensions: 4.17” L x 3.8” W x 0.75” H (106 mm L x 99mm W x 19.20mm H)
