Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 10 A |
| Output Power | 240 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Series | |
| Shop By | Factory Choice |
| Special Features | Convection Cooled |
| Type | Industrial |
| UPC Code | 040892917437 |
| Voltage, Input Range | 93-132/187-264 VAC |
Overview

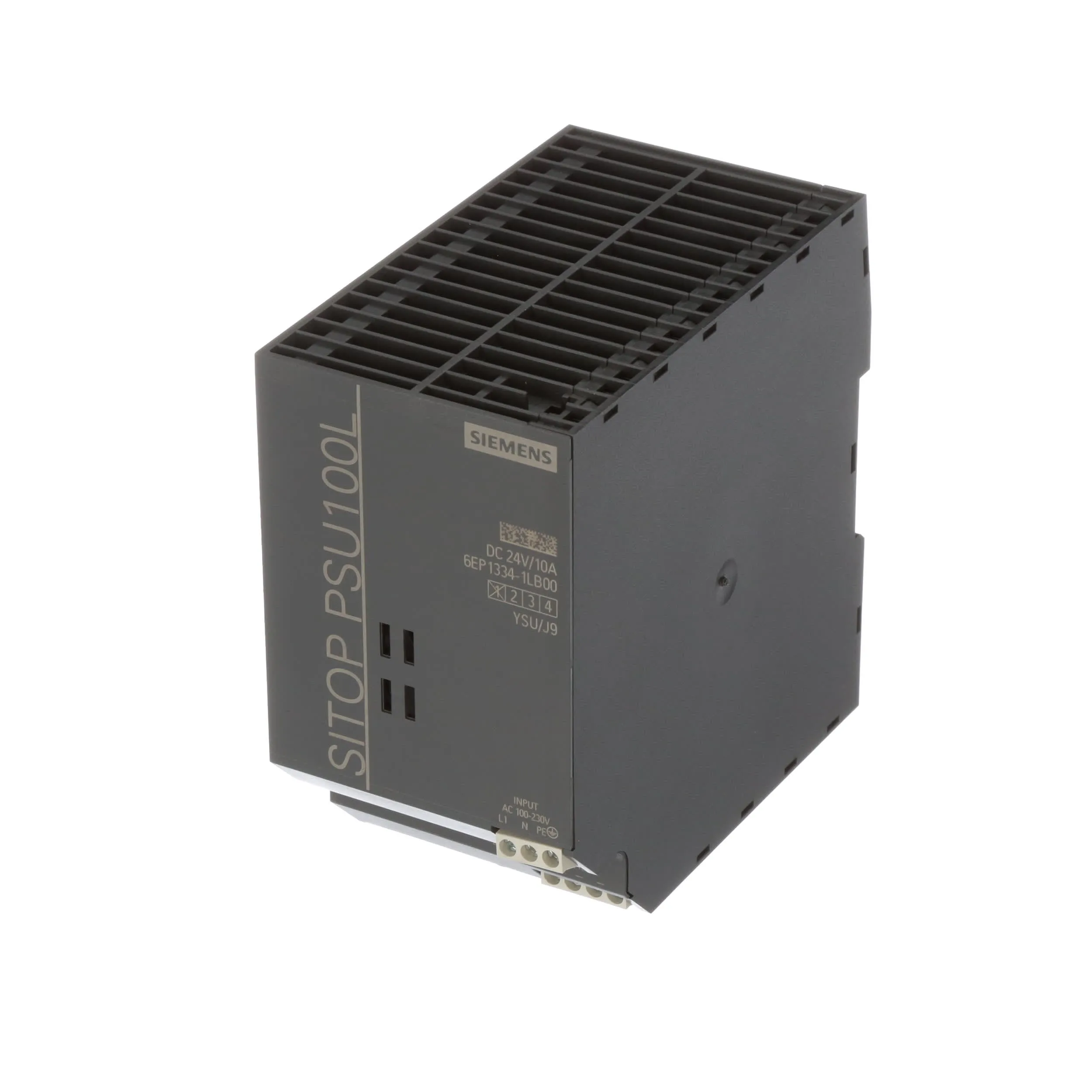

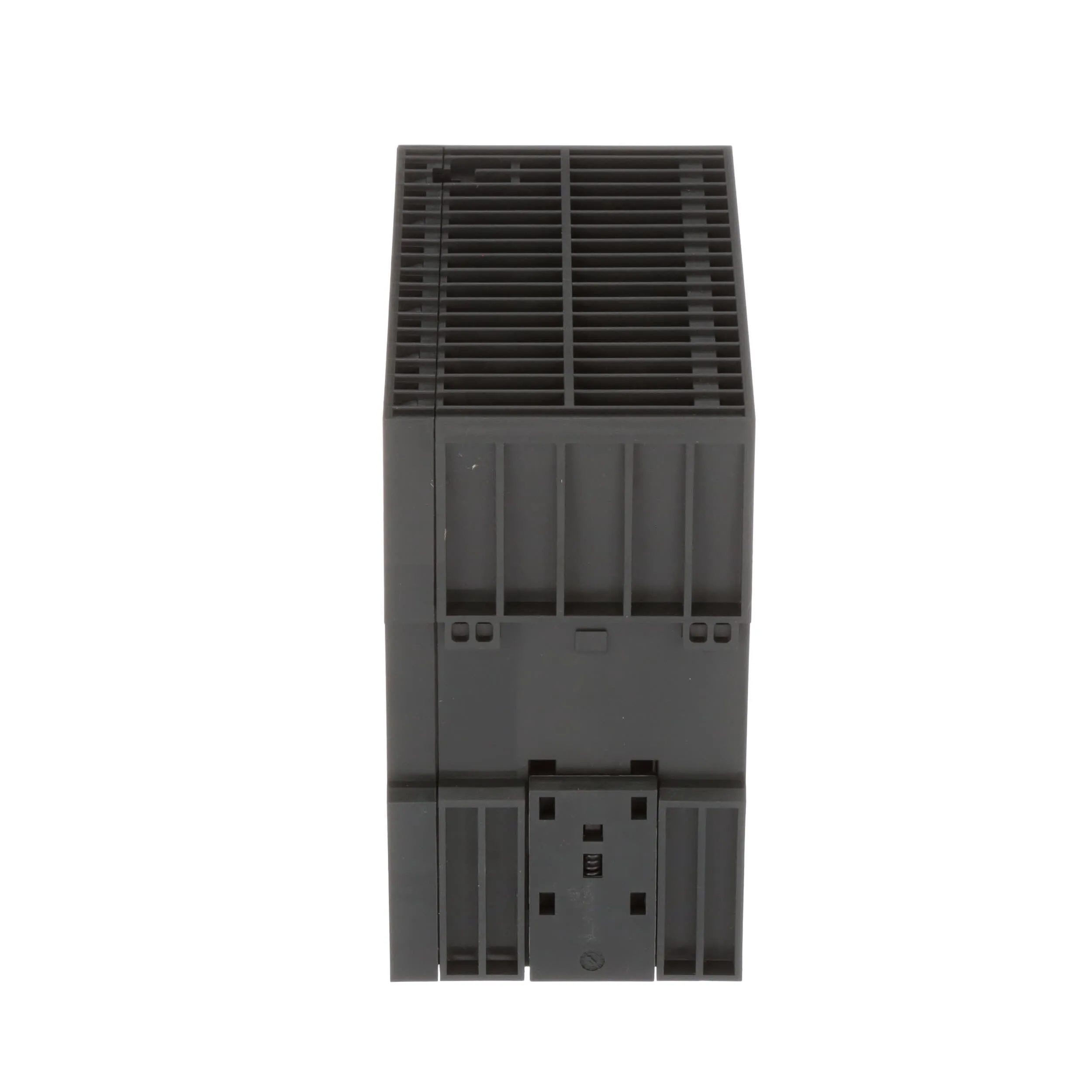

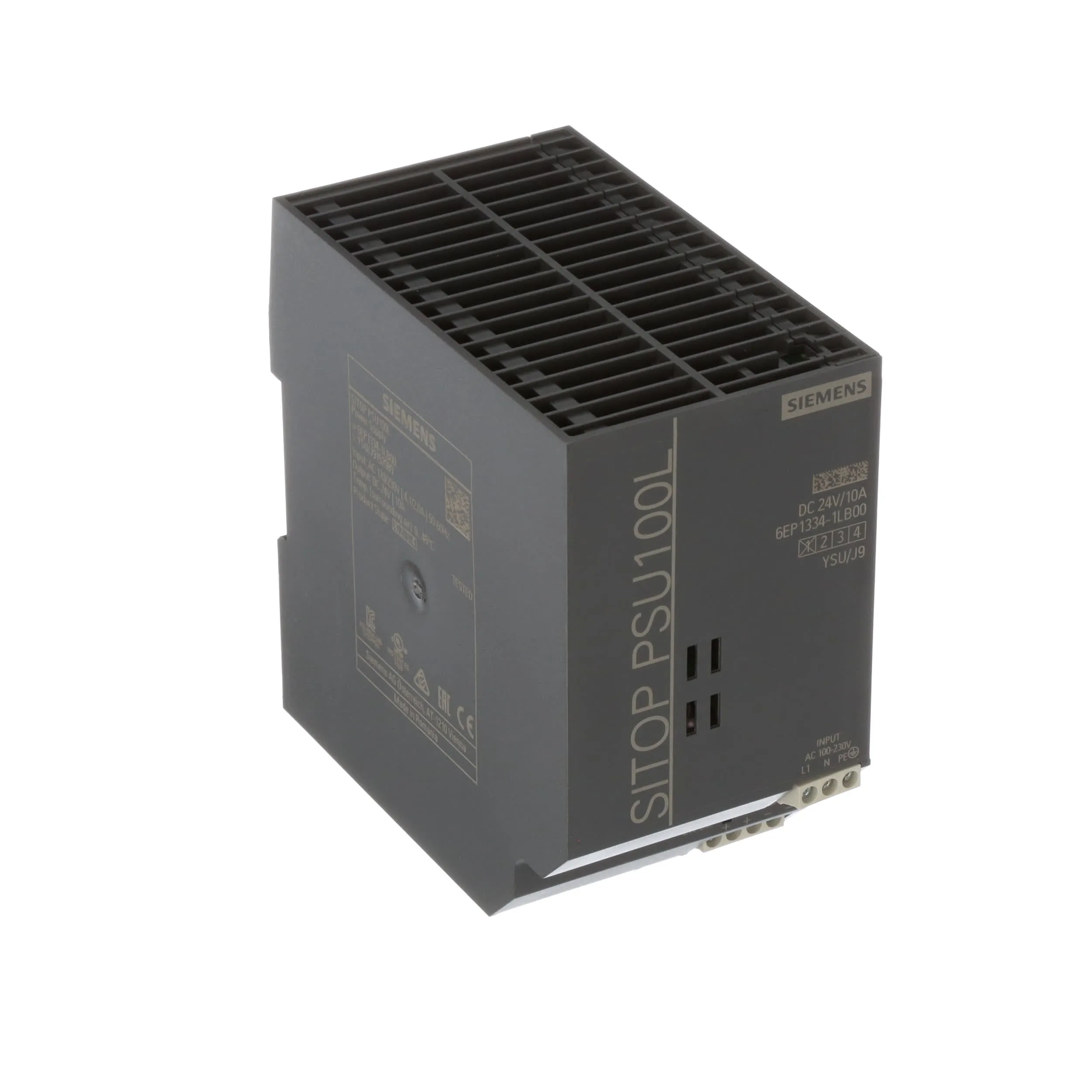

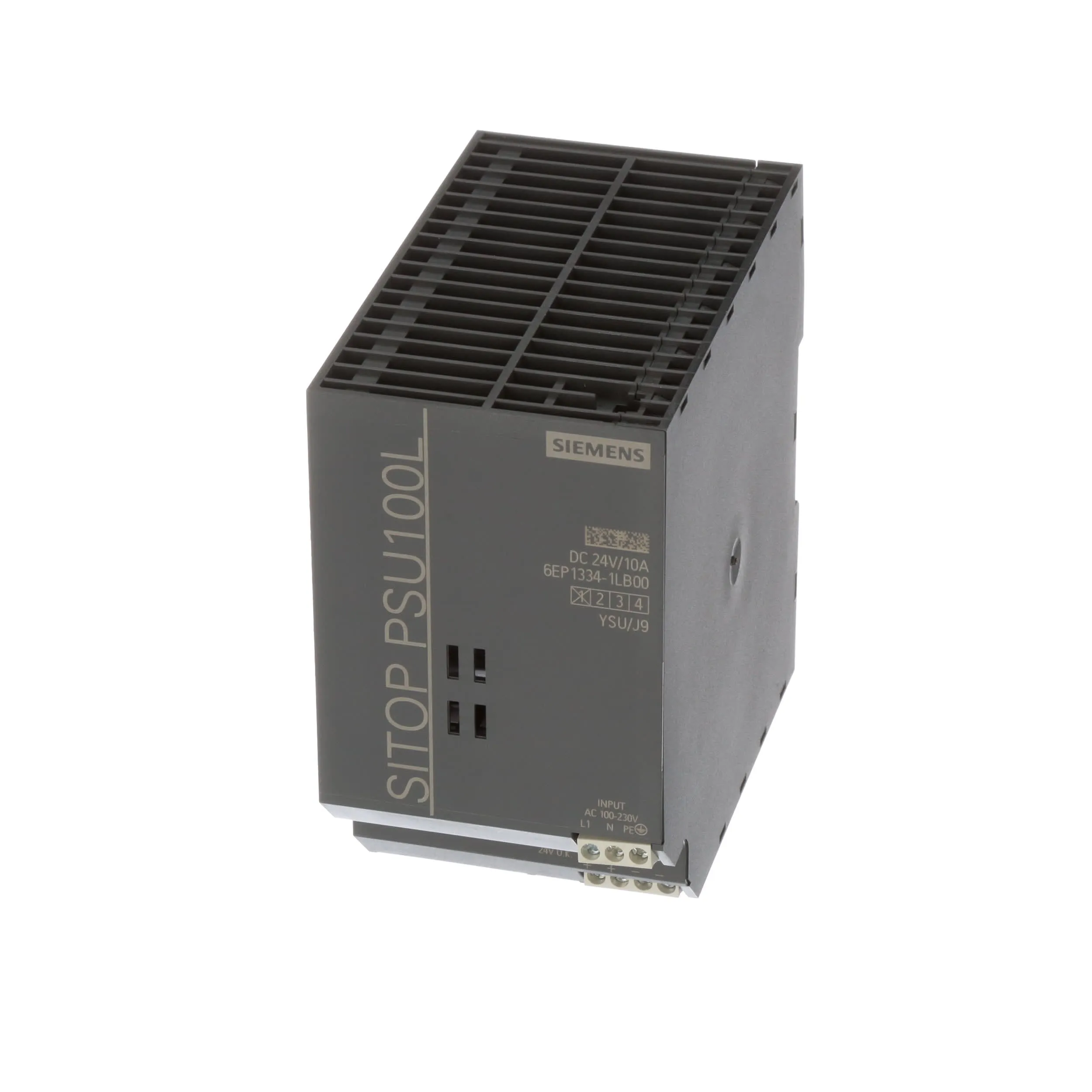

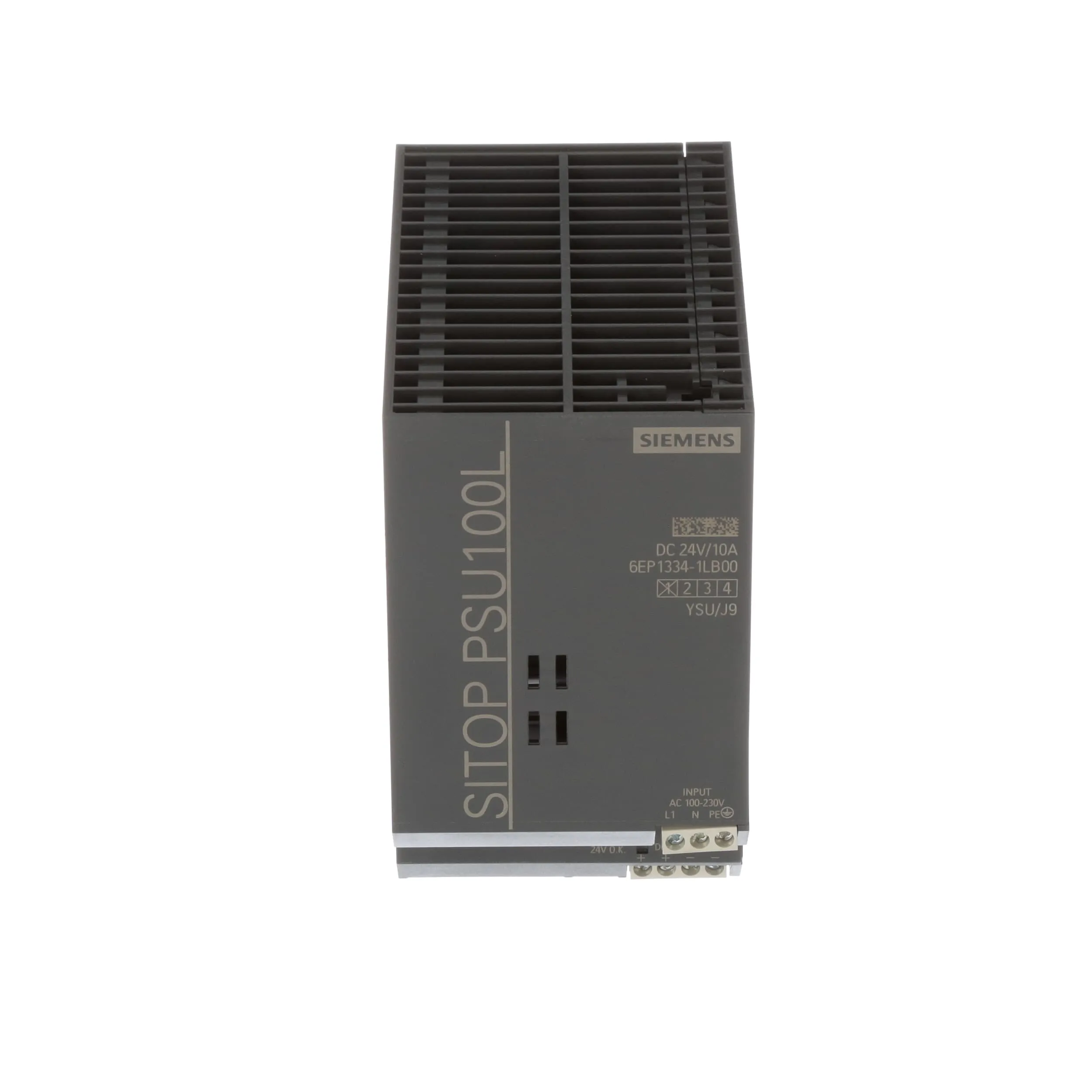

Siemens SITOP Lite Series — The Cost-effective Basic Power Supply:
The new range of power supplies is designed for standard requirements in industrial environments and offers all important functions at a favorable price, of course without compromising quality and the proverbial SITOP reliability. The wide-range input with manual switchover supports connection to a wide range of 1-phase supply systems. Thanks to the narrow width, the primary switched-mode regulators require little space on the DIN rail and can be easily integrated. Low thermal losses in the control cabinet. Short-circuit and overload protection as well as UL approval for export ensure problem-free use.
Features:
